At ULTRA MOULD, we are specialists in blow moulding machine supply and high-precision mould manufacturing for the plastic industry. We provide complete solutions from mould design to machine installation, helping clients set up and run efficient bottle manufacturing lines.
Our expertise includes:
Semi-Automatic & Auto Drop Blow Moulding Machines
Bottle Moulds (50ml to 25 Litres)
Jar, Oil & Chemical Container Moulds
Pharma & Cosmetic Bottle Moulds

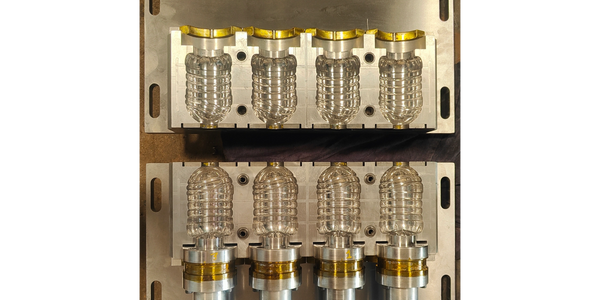

Multi-Cavity Moulds for high-volume production
Custom Blow Moulds as per client design
We deliver end-to-end bottle manufacturing solutions for PET, HDPE, and other plastics, ensuring durability, precision, and high productivity.
About SEMI AUTOMATIC MACHINE
Our Mission
Our Capabilities
Our Expertise
“To engineer innovative and reliable PET moulding solutions that set new standards in quality and customer satisfaction.
Our Expertise
Our Capabilities
Our Expertise

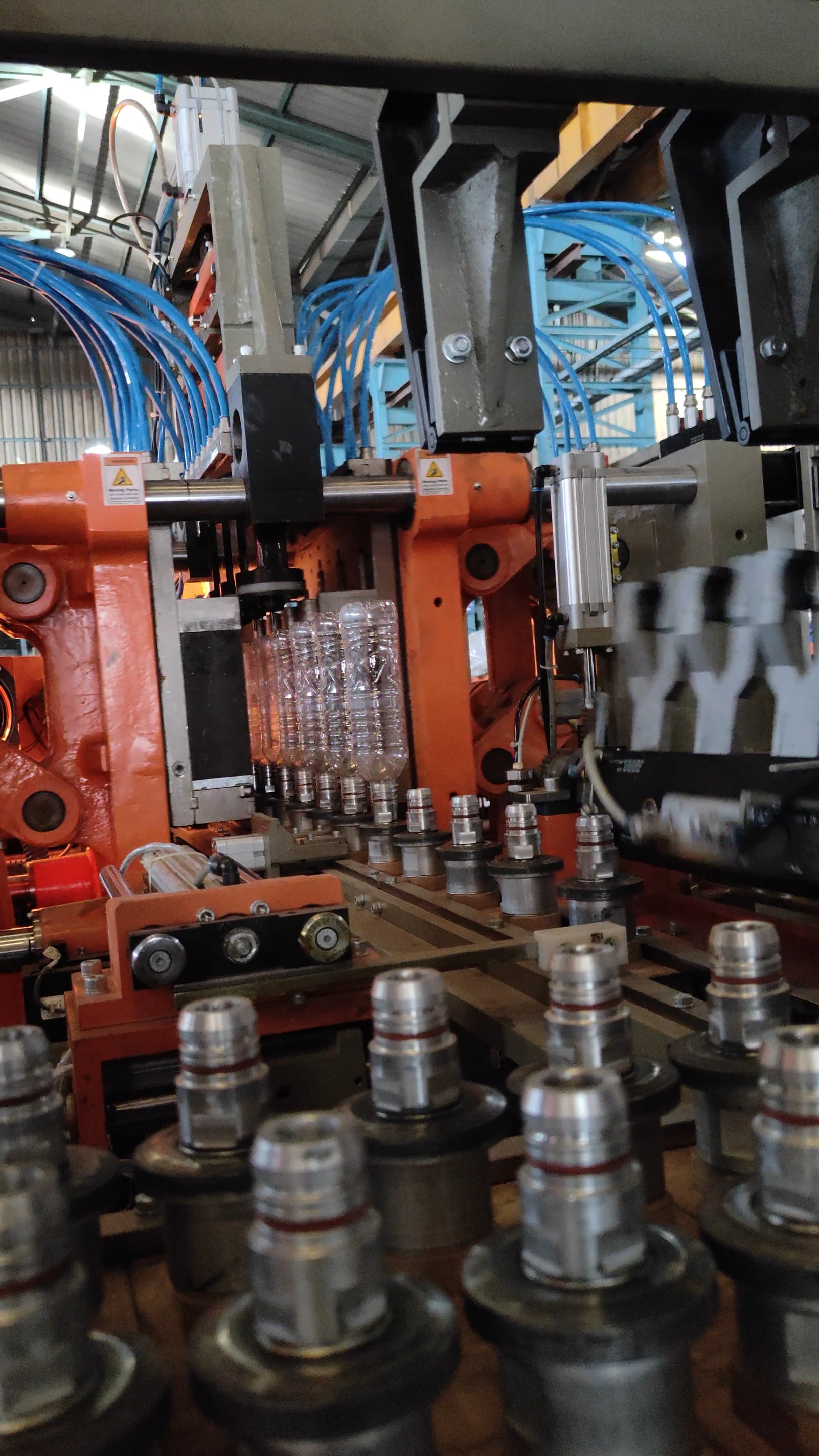

Semi-Automatic PET Blow Moulding Machine Specifications
General
- Machine Type: Semi-Automatic PET Stretch Blow Moulding Machine
- Application: PET bottle manufacturing (Water, CSD, Juice, Oil, etc.)
- Suitable for Bottle Size: 50 ml – 2000 ml (optional models up to 5 L)
- Mould Cavity: 2 cavity / 4 cavity (optional)
Production Capacity
- Output:
Semi-Automatic PET Blow Moulding Machine Specifications
General
- Machine Type: Semi-Automatic PET Stretch Blow Moulding Machine
- Application: PET bottle manufacturing (Water, CSD, Juice, Oil, etc.)
- Suitable for Bottle Size: 50 ml – 2000 ml (optional models up to 5 L)
- Mould Cavity: 2 cavity / 4 cavity (optional)
Production Capacity
- Output: 1,000 – 2,000 Bottles per Hour (depends on bottle size & operator skill)
- Max Production per Cavity: ~500–1200 BPH
Preform Specifications
- Preform Neck Diameter: 18 mm – 120 mm (as per mould design)
- Preform Length: 50 mm – 100 mm
Bottle Specifications
- Max Bottle Volume: 2 Liters (standard) / 5 Liters (optional model)
- Max Bottle Diameter: 100 mm – 180 mm
- Max Bottle Height: 330 mm (standard)
Power & Utilities
- Power Supply: 220V / 380V, 3 Phase, 50 Hz
- Installed Power: 15 – 25 kW (including heating & blowing)
- Heater Power: 6–10 kW (adjustable according to preform size)
- Air Compressor Requirement:
- High Pressure: 30 – 35 Bar
- Low Pressure: 7 – 8 Bar
- High Pressure: 30 – 35 Bar
- Chiller/Water Cooling: 5 – 8 Liters/min at 10–15°C
Machine Dimensions & Weight
- Machine Size: ~ 1.6 m (L) × 0.65 m (W) × 1.8 m (H) per unit
- Heater (Oven) Size: ~ 1.8 m (L) × 0.6 m (W) × 1.45 m (H)
- Machine Weight: 800 – 1200 kg (approx)
Features
- Microprocessor/PLC based control system
- Infrared heating system for uniform preform heating
- Simple changeover for different moulds
- Low maintenance & operator friendly
- Suitable for mineral water, soft drinks, edible oil, and pharma bottle
Our Capabilities
Our Capabilities
Our Capabilities
Precision Engineering – Advanced design and manufacturing to ensure high accuracy and long-lasting moulds.
Customization – Tailor-made moulds and machines to match specific bottle designs and customer needs.
High Productivity Solutions – Machines designed for efficiency, reduced cycle time, and consistent output.
Quality Assurance – Strict q
Precision Engineering – Advanced design and manufacturing to ensure high accuracy and long-lasting moulds.
Customization – Tailor-made moulds and machines to match specific bottle designs and customer needs.
High Productivity Solutions – Machines designed for efficiency, reduced cycle time, and consistent output.
Quality Assurance – Strict quality control at every stage for reliable performance and durability.
After-Sales Support – Dedicated technical support, installation, and maintenance services worldwide.
Global Reach – Proven capability to serve clients across industries such as beverages, pharma, cosmetics, and household products.
About ULTRA MOULD
Our Mission
Our Capabilities
Our Expertise
At Ultra Mould, our mission is to deliver world-class mold solutions that combine precision engineering, innovation, and reliability. We are dedicated to helping our clients succeed by providing high-quality molds with unmatched consistency and performance. Every project we undertake is driven by a commitment to excellence, integrity, and customer satisfaction
Our Expertise
Our Capabilities
Our Expertise
With decades of industry experience, the team at Ultra Mould brings deep technical knowledge and craftsmanship to every mold we create. We specialize in high-precision machining, advanced CAD/CAM design, and modern manufacturing techniques. Our expertise ensures each product meets the highest standards — tailored exactly to your unique application needs.
Our Capabilities
Our Capabilities
Our Capabilities
Ultra Mould offers a complete range of mold-making services, from custom tool and die design to full-scale production and support. Our facility is equipped with state-of-the-art machines and technology to handle the most demanding and complex projects. Whether it's prototype development or mass production, we deliver precision, durability, and results — on time, every time.
